Focke-Wulf Fw 190

Focke-Wulf Fw 190 F-8 mit Panzerschreck
	General Historical Information
Place of origin	Germany
Speed	653 km/h
	General Ingame Information
Debut	v0.4
Used by	Germany
Guns	2x 15 mm MG 151; 2x 13 mm MG 131
Rockets	4x 88mm Panzerschreck
	Historical Picture

Focke-Wulf Fw 190 G
	General Historical Information
Place of origin	Germany
Manufacturer	Focke-Wulf Flugzeugbau AG
Speed	653 km/h
Category	Fighter bomber
	General Ingame Information
Used by	Germany
Guns	2x 15 mm MG 151 machineguns; 2x 13 mm MG 131 machineguns; 2x 15 mm MG 151/20 machineguns(*); ; ( = only without the bomb load)
Bombs	4x 50 kg; 8x 50 kg; 1x 500 kg; ; (Per line kind of bomb load).
	Historical Picture

Focke-Wulf Fw 190 A-7/R6
	General Historical Information
Place of origin	Germany
Manufacturer	Focke-Wulf Flugzeugbau AG
Speed	610 km/h
Category	Interceptor
	General Ingame Information
Used by	Germany
Guns	2x 15 mm MG 151; 2x 13 mm MG 131
Rockets	2x 21 cm Werfer-Granate 21 AA rockets

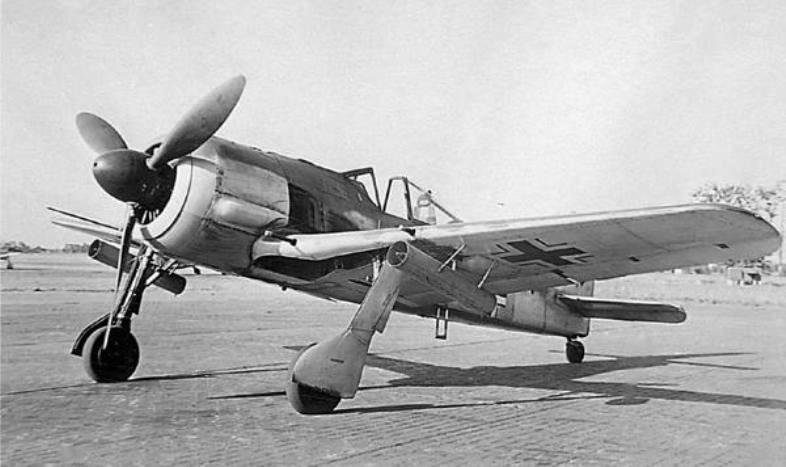

	Historical Picture

The Focke-Wulf Fw 190 "Würger" (Shrike / Strangler) was a German Second World War single-seat, single-engine fighter aircraft designed by Kurt Tank in the late 1930s. The Anton's were powered by a radial engine, and the late Dora's By water cooled Jumo Inline engines. The 190 had ample power and was able to lift larger loads than its well-known counterpart, the Messerschmitt Bf 109. The 190 was used by the Luftwaffe in a wide variety of roles, including day fighter, fighter-bomber, ground-attack aircraft and, to a lesser degree, night fighter. When the Fw 190 started flying operationally over France in August 1941, it quickly proved itself to be superior in all but turn radius to the Royal Air Force's main front-line fighter, the Spitfire Mk. V. The 190 wrested air superiority away from the RAF until the introduction of the vastly improved Spitfire Mk. IX in July 1942 restored qualitative parity. The Fw 190 made its air combat debut on the Eastern Front in November/December 1942. Though Soviet pilots considered the Bf 109 the greater threat, the Fw 190 made a significant impact. The fighter and its pilots proved just as capable as the Bf 109 in aerial combat, and in the opinion of German pilots who flew both, provided increased firepower and manoeuvrability at low to medium altitude. The Fw 190 became the backbone of the Jagdwaffe (Fighter Force), along with the Bf 109. On the Eastern Front, the Fw 190 was versatile enough to use in Schlachtgeschwader (Battle Wings or Strike Wings), specialised ground attack units which achieved much success against Soviet ground forces. As an interceptor, the Fw 190 underwent improvements to make it effective at high altitude, enabling it to maintain relative parity with its Allied opponents. The Fw 190A series' performance decreased at high altitudes (usually 6,000 m (20,000 ft) and above), which reduced its effectiveness as a high-altitude interceptor, but this problem was mostly rectified in later models, particularly in the Junkers Jumo 213 inline-engine Focke-Wulf Fw 190D series, which was introduced in September 1944. In spite of its successes, it never entirely replaced the Bf 109. The Fw 190 was well liked by its pilots. Some of the Luftwaffe's most successful fighter aces claimed a great many of their kills while flying it, including Otto Kittel, Walter Nowotny and Erich Rudorffer.

Fw 190 A-7/R6[]

The Fw 190 A-7 was based on the Fw 190 A-5/U9 prototype, and entered production in November 1943. The A-7 was equipped with the BMW 801 D-2 engine, again producing 1,700 PS (1,677 hp, 1,250 kW). Designed to combat the USAAF's heavy bombers the basic armament was upgraded to include two fuselage-mounted 13 mm (.51 in) MG 131s, replacing the MG 17s. Because the larger-breeched MG 131s had to be mounted further apart, the upper gun cowling, just in front of the cockpit, was modified with faired bulges and a new upper engine cowling was manufactured. This left insufficient room for the three cowling toggle latches, which were moved to the side panels. The rest of the armament fit stayed the same as earlier versions; two wing root-mounted 20 mm MG 151s and two outer wing-mounted 20 mm MG 151s. The Revi gunsight was updated to the new 16B model. The additional weight of the new weapon systems required strengthening of the wheels, adding a reinforced rim to better deal with typical combat airfield conditions. The A-7 was usually outfitted with the centreline-mounted ETC 501 rack. There were several major Rüstsätze for the A-7, many including Werfer-Granate 21 WGr 21 rockets under the wings, like the A-7/R6 interceptor.

Fw 190 G[]

The Fw 190 G was built as a long-range attack aircraft (JaBo Rei, or Jagdbomber mit vergrösserter Reichweite). Following the success of the Fw 190 F as a Schlachtflugzeug (close support aircraft), both the Luftwaffe and Focke-Wulf began investigating ways of extending the range of the Fw 190 F. From these needs and tests, the Fw 190 G was born.

There were four distinct versions of the Fw 190 G:

The Fw 190 G-1: The first Fw 190 Gs were based on the Fw 190 A-4/U8 JaBo Rei's. Initial testing found that if all but two wing root mounted 20 mm MG 151 cannons (with reduced ammunition load) were removed, the Fw 190 G-1 (as it was now called) could carry a 250 kg (550 lb) or 500 kg (1,100 lb) bomb on the centreline and, via an ETC 250 rack, up to a 250 kg (550 lb) bomb under each wing. Typically the G-1s flew with underwing fuel tanks, fitted via the VTr-Ju 87 rack. The FuG 25a IFF (identification friend/foe) was fitted on occasion as well as one of the various radio direction finders available at the time. With the removal of the fuselage mounted MG 17s, an additional oil tank was added to support the BMW 801 D-2 engine's longer run times.[citation needed]

The Fw 190 G-2: The G-2 was based on the Fw 190 A-5/U8 aircraft. The G-2s were similarly equipped to the G-1s; however, due to wartime conditions, the underwing drop tank racks were replaced with the much simpler V.Mtt-Schloß fittings, to allow for a number of underwing configurations. Some G-2s were also fitted with the additional oil tank in place of the MG 17s; however, not all were outfitted with the oil tank. Some G-2s were fitted with exhaust dampers and landing lights in the left wing leading edge for night operations.

The Fw 190 G-3: The G-3 was based on Fw 190 A-6. Like the earlier G models, all but the two wing root mounted MG 151 cannons were removed. The new V.Fw. Trg bombracks, however, allowed the G-3 to simultaneously carry fuel tanks and bomb loads. Because of the range added by two additional fuel tanks, the G-3's duration increased to two hours, 30 minutes. Due to this extra flight duration, a PKS 11 autopilot was fitted. Some G-3s built in late 1943 were also fitted with the a modified 801 D-2 engine which allowed for increased low-altitude performance for short periods of time. The G-3 had two primary Rüstsätze kits. The R1 replaced the V.Fw. Trg racks with WB 151/20 cannon pods. This gave the G-3/R1 a total of six 20 mm cannons. When fitted with the R1 kit, the G model's addition armor was typically not used, and the PKS11 removed. The G-3/R1 was used in both ground strafing and anti-bomber roles. The R5 was similar to the R1, but the V.Fw. Trg racks were removed, and two ETC 50 racks per wing were added. As with the R1, the additional armor from the base G model were removed, as was the additional oil tank. In some instances, the fuselage mounted MG 17s were refitted.

The Fw 190 G-8: The G-8 was based on the Fw 190 A-8. The G-8 used the same "bubble" canopy as the F-8, and was fitted with underwing ETC 503 racks that could carry either bombs or drop tanks. Two primary Rüstsätze kits were also seen on the F-8. The R4 kit was a planned refit for the GM 1 engine boost system, but never made it into production, and the R5 kit replaced the ETC 503 racks with two ETC 50 or 71 racks. Due to the similarities with the F-8, the G-8 was only in production for a short amount of time.[citation needed] Some Gs were field modified to carry 1,000 kg (2,210 lb), 1,600 kg (3,530 lb) and 1,800 kg (3,970 b) bombs. When this was done, the landing gear was slightly improved by enhancing the oleo struts and using reinforced tires.[citation needed] Approximately 1,300 Fw 190 Gs of all variants were new built. Due to war conditions, the manufacturing environment, and the use of special workshops during the later years of the war, the actual number of G models built is almost impossible to determine. During the later years of the war, "composite" aircraft were often assembled. For example, the wings from a fuselage damaged aircraft and the fuselage from a wing damaged aircraft might be reassembled into a new aircraft and listed as a Fw 190G with a new serial number. The Fw 190 G-1 currently displayed at the National Air and Space Museum is one of these "composite" aircraft, built from the fuselage of a Fw 190 A-7.

Fw 190 F-8 Panzerschreck[]

The Fw 190 F was originally manufactured as a Fw 190 A-0/U4. Early testing started in May 1942. The A-0 testbed aircraft was outfitted with centreline and wing-mounted ETC 50 bomb racks. The early testing results were quite good, and Focke-Wulf began engineering the attack version of the Fw 190. New armor was added to the bottom of the fuselage, protecting the fuel tanks and pilot, the engine cowling, and the landing gear mechanisms and outer wing mounted armament. Finally, the Umrüst-Bausatz kit 3 was fitted to the aircraft by means of a ETC 501 or ER4 centreline mounted bomb rack and up to a SC250 bomb under each wing. This aircraft was designated the Fw 190 F-1. The first 30 Fw 190 F-1s were renamed Fw 190 A-4/U3s; however, Focke-Wulf quickly began assembling the aircraft on the line as Fw 190 F-1s as their own model, with 18 more F-1s built before switching to the F-2. The Fw 190 F-2s were renamed Fw 190 A-5/U3s, which again were soon assembled as Fw 190 F-2s on the production line. There were 270 Fw 190 F-2s built according to Focke-Wulf production logs and Ministry of Aviation acceptance reports. The Fw 190 F-8 differed from the A-8 model in having a slightly modified injector on the compressor which allowed for increased performance at lower altitudes for several minutes. The F-8 was also fitted with the improved FuG 16 ZS radio unit, which provided much better communication with ground combat units. Armament of the Fw 190 F-8 was two 20 mm MG 151/20 cannon in the wing roots and two 13 mm (.51 in) MG 131 machine guns above the engine. According to Ministry of Aviation acceptance reports, at least 3,400 F-8s were built, and probably several hundred more were built in December 1944 and from February to May 1945. (Data for these months is missing and probably lost.)[citation needed] Dozens of F-8s served as various testbeds for anti-tank armament, including the WGr.28 280 mm air-to-ground missile, probably based on the projectiles from the Nbw 41 heavy ground-barrage rocket system, and the 88 mm Panzerschreck 2 rockets, Panzerblitz 1 and R4M rockets. There were also several Umrüst-Bausätze kits developed for the F-8, which included the Fw 190 F-8/U1 long range JaBo, fitted with underwing V.Mtt-Schloß shackles to hold two 300 L (80 US gal) fuel tanks. ETC 503 bomb racks were also fitted, allowing the Fw 190 F-8/U1 to carry one SC 250 bomb under each wing and one SC 250 bomb on the centreline.

Fw 190 F-8 SG 113[]

Focke-Wulf Fw 190 F-8 mit SG 113

General Historical Information
Place of origin	Germany
Speed	624 km/h
General Ingame Information
Debut	v0.4
Used by	Germany
Guns	2x 15 mm MG 151
Rockets	4x SG 113 "Förstersonde"
Historical Picture

SG113 is the result of research carried out the rockets parallel to, to fight against the armoured tanks. This device was to have an improved effectiveness and a better flexibility than the rockets. Intended for the planes of support, Fw 190 F, this weapon is a short gun of 75 mm, without retreat and with single blow. The plane flew at low altitude and high speed and the shooting was started by a device sensitive to the magnetic field of the tanks or armoured vehicles flown over. The shell with its tube weighed approximately 67kg. On Fw 190 F; they were assembled quasi vertically per pairs through the wing of each with dimensions of the fuselage of the plane. The ammunition used made it possible to transpierce until 50 mm shielding with an angle penetration of 60° and 40 mm under an angle of 75°, this device was announced at the time of the end of the tests like having a probability of blow to the goal of more than 60%, which is enormous for the time. The effectiveness was measured by it by cinémitrailleuse gone up in the axis of shooting (downwards and the back approximately 15°) and started at the time of the shooting. For safety, a device prevented the shooting at a speed lower than 300km/h.

Fw 190 D-9[]

Fw 190 D-9 "Dora-9" "Langnasen-Dora" (Long-nose Dora)

General Historical Information
Place of origin	Germany
Speed	680 km/h
General Ingame Information
Debut	FHSW-dogfightDay5coop (Map)
Used by	Germany
Crew in‑game	1
Guns	2x 20mm МG-151/20 2x 13 mm MG 131
Bombs	500 kg in ЕТС-504 holder
Historical Picture

The longnose Dora was built mainly to adapt the proven Fw 190A to combat operations at high altitudes, above 7,000m (20,000ft), where allied bomber formations operated. The modifications through which the Fw 190D went through, were different enough to virtually consider it a new aircraft from the A, F and G. The D-9 led to other versions, of which only the D-11 and D-13 saw practical use.

Due to the development of events, operational altitudes were rare. Even so, this was a fighter that could stand up to the best the Allies could field, and along with the Ta 152, represented the epitome of German piston-engined fighter design.

Fw190D-9 (0)
Fw190D-9 (1)
Fw190D-9 (2)
Fw190D-9 (3)
Fw190D-9 (4)
Fw190 D-9
