Nakajima Ki-84 "Hayate"
(キ84 疾風"Gale"?)
Army Type 4 Fighter
Ki-84 Hayate.jpg
General Historical Information
Place of origin Japan
Designer Koyama
Manufacturer Nakajima Aircraft Company
Produced In 1943 - 1945
Speed 686 km/h
Category Fighter
General Ingame Information
Debut v0.4
Used by Japan
Crew in‑game 1

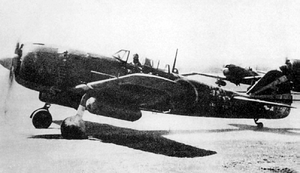

Historical Picture

The Nakajima Ki-84 "Hayate" (キ84 疾風"Gale") was a single-seat fighter used by the Imperial Japanese Army Air Force in World War II. The Allied reporting name was "Frank"; the Japanese Army designation was Army Type 4 Fighter (四式戦闘機 yon-shiki-sentō-ki). Featuring excellent performance and high maneuverability, the Ki-84 was considered to be the best Japanese fighter to see large scale operations during World War II. It was able to match any Allied fighter, and to intercept the high-flying B-29 Superfortresses. Its powerful armament (that could include two 30 mm and two 20 mm cannon) increased its lethality. Though hampered by poor production quality in later models, a high-maintenance engine, a landing gear prone to buckle, and lack of experienced pilots above all else, Hayates proved to be fearsome opponents; a total of 3,514 were built. The Ki-84 was the fastest fighter in the Imperial Japanese military if good fuel was used and the aircraft was in a good shape.

Design of the Ki-84 commenced in early 1942 to meet an Imperial Japanese Army Air Service requirement for a replacement to Nakajima's own, earlier Ki-43 Oscar fighter, then just entering service. The specification recognized the need to combine the maneuverability of the Ki-43 with performance to match the best western fighters and heavy firepower.[4] The Ki-84 first flew in March 1943. Deliveries from Nakajima's Ota factory commenced in April 1943  Although the design itself was solid, the shortage of fuel and construction materials, poor production quality, and lack of skilled pilots prevented the fighter from reaching its potential.

The Ki-84 addressed the most common complaints about the popular and highly maneuverable Ki-43: insufficient firepower, poor defensive armor, and lack of climbing speed. The Ki-84 was a cantilever low-wing monoplane of all-metal construction, except for the fabric-covered control surfaces. It had retractable tailwheel landing gear. Armament comprised two fuselage-mounted, synchronized 12.7 mm (.50 in) machine guns and two wing-mounted 20 mm cannon, a considerable improvement over the two 12.7 mm (.50 in) machine guns used in the Hayabusa. Defensive armor offered Hayate pilots better protection than the unsealed wing tanks and light-alloy airframe of the Ki-43. In addition, the Ki-84 used a 65 mm (2.56 in) armor-glass canopy, 13 mm (.51 in) of head and back armor, and multiple bulkheads in the fuselage, which protected both the methanol-water tank (used to increase the effectiveness of the supercharger) and the centrally located fuel tank.

It was the Nakajima Ha-45 radial powerplant that gave the Hayate its high speed and prowess in combat. Derived from the Homare engine common to many Japanese aircraft, the Hayate used a direct-injection version of the engine, using water injection to aid the supercharger in giving the Ki-84 a rated 1,491 kW (2,000 hp) at takeoff. This combination theoretically gave it a climb rate and top speed roughly competitive with the top Allied fighters. Initial Hayate testing at Tachikawa in early summer 1943 saw test pilot Lieutenant Funabashi reach a maximum level airspeed of 624 km/h (387 mph) in the second prototype. After the war, a late-production, captured example was tested in the US with high octane fuel, and achieved a speed of 687 km/h (426 mph).

The complicated direct-injection engine required a great deal of care in construction and maintenance and, as the Allies advanced toward the Japanese homeland, it became increasingly difficult to support the type's designed performance. Compounding reliability problems were the Allied submarine blockade which prevented delivery of crucial components, such as the landing gear. Many further landing gear units were compromised by the poor-quality heat treatment of late-war Japanese steel. Many Hayates consequently suffered strut collapses on landing. Further damage was caused by inadequately trained late war pilots.

The first major operational involvement was during the battle of Leyte at the end of 1944, and from that moment until the end of the Pacific war the Ki-84 was deployed wherever the action was intense. The 22nd Sentai re-equipped with production Hayates. Though it lacked sufficient high-altitude performance, it performed well at medium and low levels. Seeing action against the USAAF 14th Air Force, it quickly gained a reputation as a fighter to be reckoned with. Fighter-bomber models also entered service. On April 15, 1945, 11 Hayates attacked US airfields on Okinawa, destroying many aircraft on the ground.

The IJAAF's Ki-84, Kawasaki Heavy Industries' Ki-100, and the Kawanishi Aircraft Company's N1K2-J IJNAF naval fighter were the three Japanese fighters best suited to combat the newer Allied fighters.

Variants[edit | edit source]

  • Ki-84-a: Prototype.
  • Ki-84-b: Evaluation model.
  • Ki-84-c: Pre-production model.
  • Ki-84-Ia Hayate: Fighter Type 4 of Army. Armed with 2 × 12.7 mm Ho-103 machine guns and 2 × 20mm Ho-5 cannon in wings (most widely produced version).
  • Ki-84-Ib: Version armed with 4 × 20 mm Ho-5 cannon. (very limited production run. May never have equipped a full Sentai)
  • Ki-84-Ic: Version against Bombers, with 2 × 20 mm Ho-5 cannon and 2 × 30 mm (1.18 in) Ho-155 cannon in wings.
  • Ki-84-Ia (Manshu Type): Manufactured in Manchukuo for Manshūkoku Hikōki Seizo KK by Nakajima License.
  • Ki-84-II: Similar to models mentioned above (Ki-84-Ia, -Ib, -Ic).
  • Ki-84 N/P/R: High altitude versions.
  • Ki-106: Prototype airframes constructed entirely out of wood. 10 built.
  • Ki-113: Prototype similar at Ki-84-Ib in steel. 1 Built.
  • Ki-116: Evaluation model, equipped with Mitsubishi Ha-112-II (Ha-33-62), 1,120 kW (1,500 hp). 1 Built.
  • Ki-117: High-altitude version of the Ki-84. None built.
